A new generation of instrument used for cement curing and testing of cement consistency properties of oil well cement under atmospheric pressure, designed and manufactured in strict accordance with API Standard Specification 10.

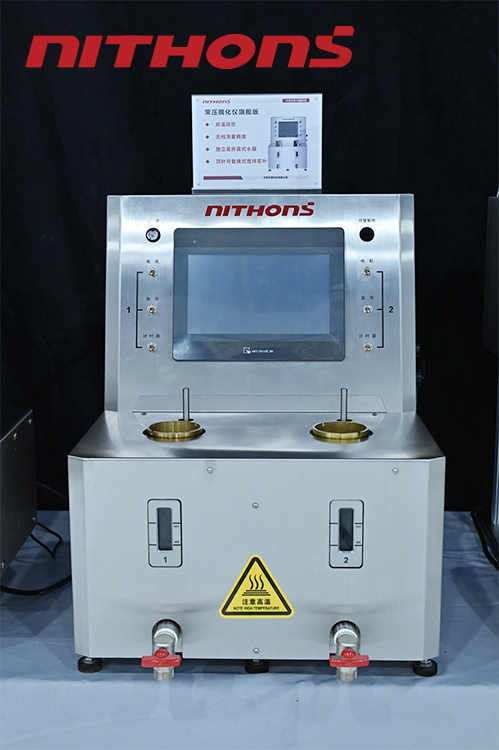

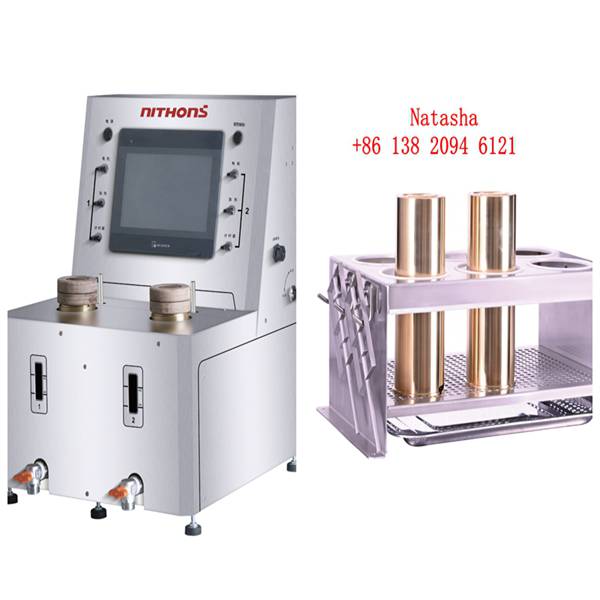

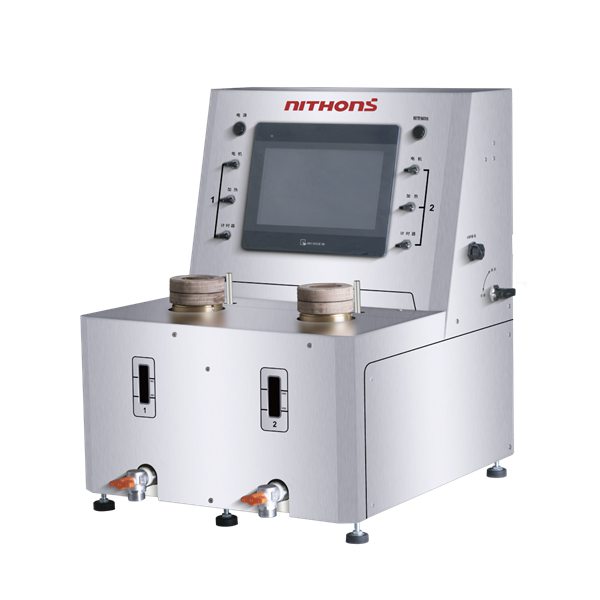

Nithons Atmospheric Consistometer: Intelligent Precision for Cement Slurry Testing
In oil well cementing operations, the atmospheric consistometer is indispensable for evaluating cement slurry thickening time under simulated wellbore conditions. As the industry's only Sino-Japanese joint venture, Tianjin Nithons Technology Co., Ltd. introduces a new generation of intelligent consistometers, blending global technological excellence with localized innovation to redefine cement slurry testing.
Maximum Temperature: 200ºF / 93ºC
Maximum Pressure: Atmospheric pressure
Heater Power: 2400 Watts
Slurry Cup Rotation Speed: 150+-15 rpm
Slurry Cup Volume: 28 cubic inches / 470 mL
Consistency Range: 0 to 100 Bc (Bearden Units)
Operating Temperature: 50 to 120ºF / 10 to 50ºC
Data Acquisition: available
Compliance: API Spec 10A / ISO 10426-1
Power Supply: 220 V 50 Hz
Dimensions (W x D x H): 54 x 65 x 65 cm
Weight: 65 kg

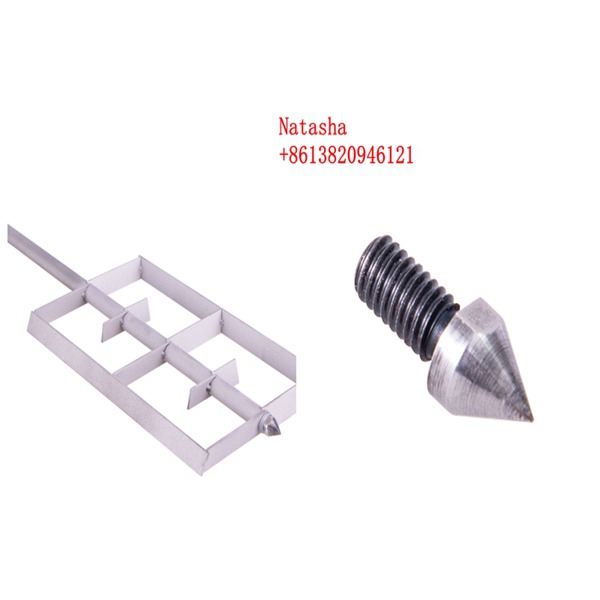

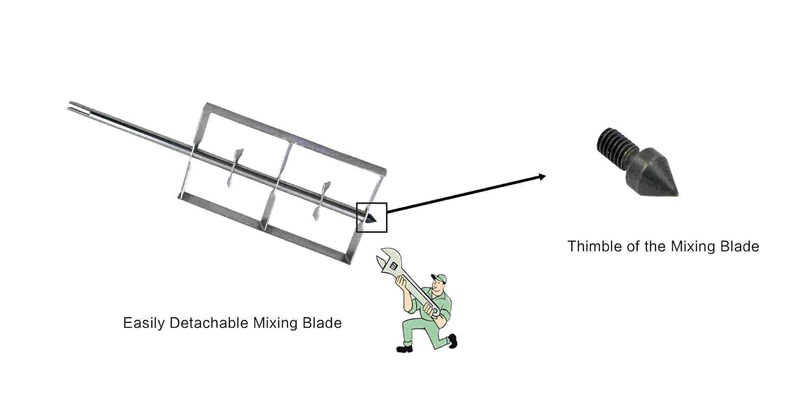

Mixing paddle with removable cone point threaded rod

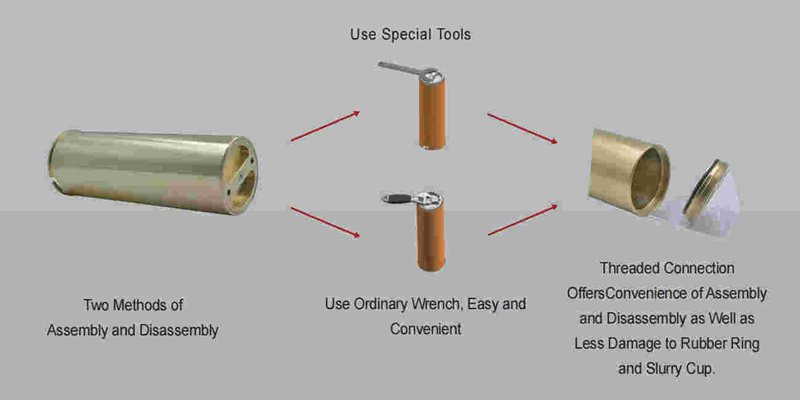

Easy to disassemble Mixing slurry cup
By combining advanced automation with user-friendly controls, the Nithons consistometer reduces training time while enhancing testing efficiency and data reliability.
✅ Global Component Excellence – German, Swiss, and Japanese technologies ensure precision and durability.
✅ Smart Automation – Simplifies operation while delivering unmatched data accuracy.
✅ Digital-Ready – Supports oilfield digitalization with seamless data export and analysis.
✅ Reliable Performance – Built for 24/7 operation in demanding lab and field environments.
As the petroleum industry embraces digital transformation, the Nithons Intelligent Atmospheric Consistometer stands at the forefront—combining cutting-edge hardware, automation, and data integration to deliver:
For engineers and researchers seeking next-generation cement testing technology, the Nithons Atmospheric Consistometer represents the gold standard in precision, efficiency, and innovation.

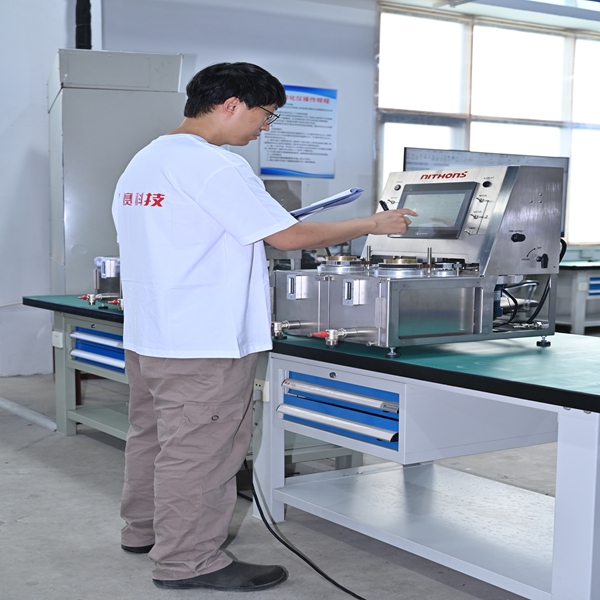

How to operate the Atmospheric Consistometer
Tianjin Nithons Technology Co., Ltd. – Where Global Expertise Meets Local Innovation for Smarter Cement Testing Solutions.
Sino-Japanese joint venture Tianjin Nithons Technology Co., Ltd. was established in 2013, focusing on the research and development, manufacturing, sales and after-sales service of a new generation of oil cementing testing instruments and related accessories.
