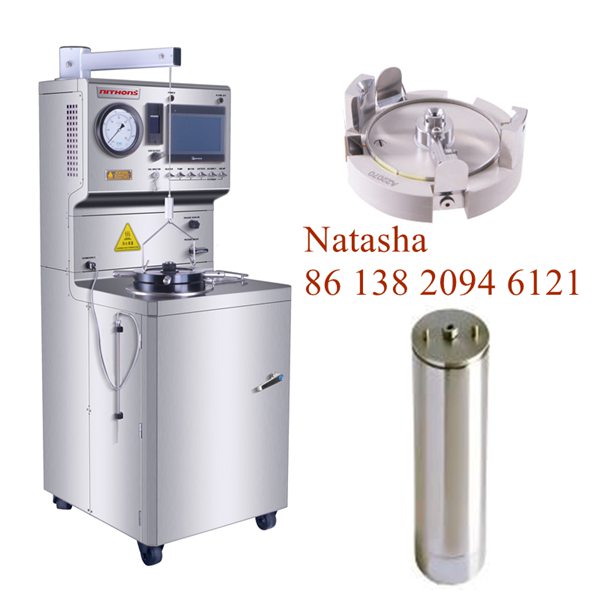

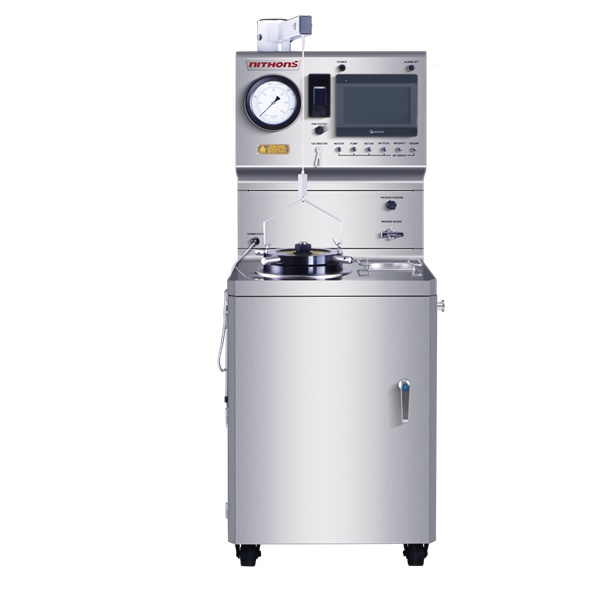

Fully automatic HTHP Consistometer used to simulate the high temperature and high pressure environment underground and continuously measure the consistency change and thickening time of oil well cement.
This instrument adopts a touch screen design, and experimental parameters can be set on it without frequent operations.

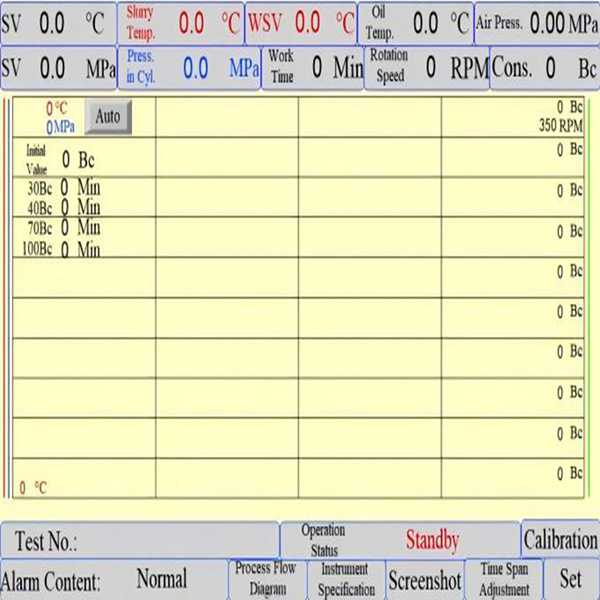

The experimental data and experimental curves can be observed through the touch screen, and the data can be saved and output through screenshots.
The experimental data can be seen at a glance and be set, observed and saved through computer software.
Sino-Japanese Craftsmanship, Precision Measurement & Control
Engineered for Cementing Engineering, Breaking Extreme Environment Testing Limits!
· 10-year joint R&D leveraging Japanese advanced design and Chinese intelligent manufacturing
· International leading precision & reliability: key components from top global brands
· Error rate <0.3%, stability improved by 40%

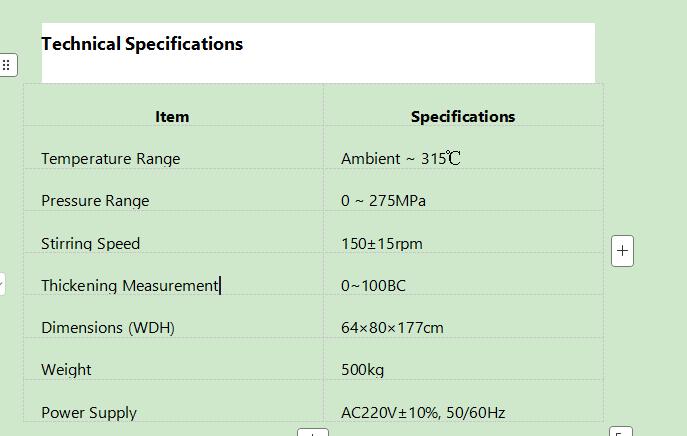

· High-temperature & high-pressure resistance: Simulates 315℃ / 275MPa cementing conditions for accurate thickening time & rheological property testing
· Intelligent temperature control: EUROTHERM controller ensures ±1℃ temperature stability
· Precision pressure control: ±0.7MPa accuracy via UK/US imported pressure components

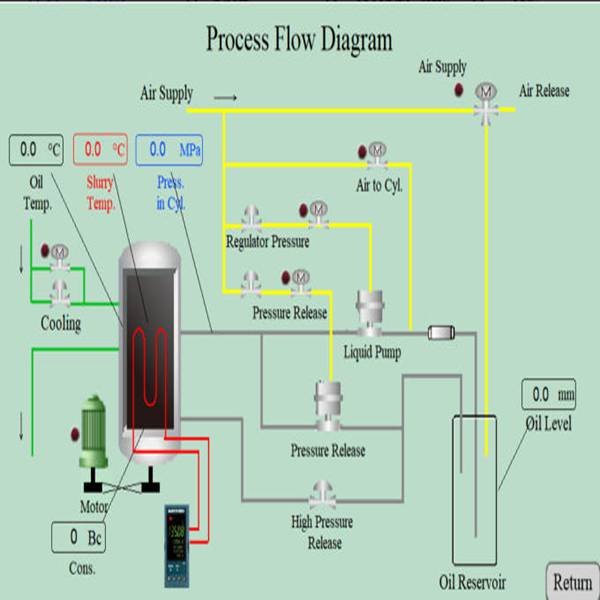

· Fully automated operation: OMRON touchscreen + Siemens PLC for one-key start, 24-hour unattended operation (mixing, heating, pressurizing, data logging)
· Real-time data monitoring: 10.1" HD touchscreen displays temperature/pressure/thickness curves; multi-format data export
· Anomaly warning system: Automatic over-temperature/pressure alarm & shutdown for safety
· Oil & gas cementing engineering
· Geological exploration
· Building material R&D
Provides reliable data for slurry formulation optimization and cementing process design.
· China Petroleum: Reduced slurry R&D cycle by 30% and improved cementing qualification rate to 98% with HTHP-8000 tester
· ISO 9001 Quality Management System Certified
· SGS Certified
· Technical support: 7×24h online consulting, remote debugging
· After-sales: 1-year core component warranty, 48h on-site response (global service teams)
· Training: Free operation training (bilingual manual & video tutorials)
Q: Does the tester support multi-language interfaces?
A: Yes – Chinese, English, Russian, and other languages for flexible use.
Q: Can the tester be customized for non-standard requirements?
A: Customization available for temperature/pressure ranges and data logging. Contact our technical advisors for details.
· Customized model selection
· Free sample testing
· One-on-one technical consultation
Contact Us Today!

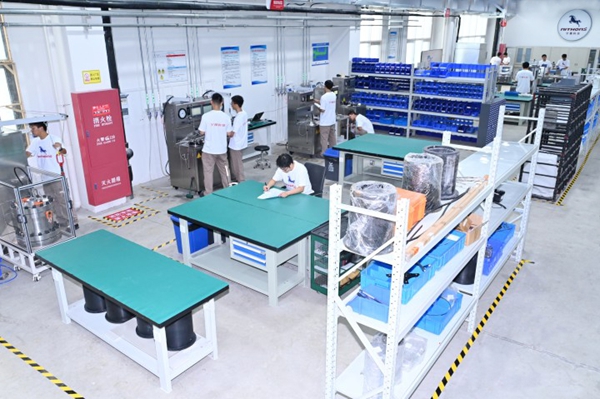

Sino-Japanese joint venture Tianjin Nithons Technology Co., Ltd. was established in 2013, focusing on the research and development, manufacturing, sales and after-sales service of a new generation of oil cementing testing instruments and related accessories.
