Product：Slurry Cup for Atmospheric Consistometer
Application; Atmospheric Cement Slurry Conditioning
Working Pressure: Atmospheric Pressure
Maximum Temperature: 93°C / 200°F
Material: Bronze
Length: 212.1 mm
Radius: 73 mm
Weight: 1.485 kg
MOQ: 1 Piece

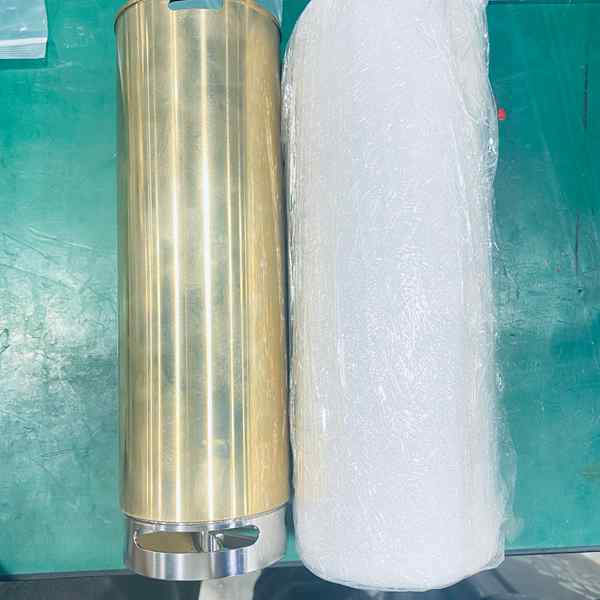

The NITHONS API slurry cup is a precision laboratory accessory designed for atmospheric consistometers used in oil well cement testing. It is used to contain and condition cement slurry during laboratory testing, including slurry conditioning and thickening-time evaluation under atmospheric pressure.
Manufactured for oilfield cementing laboratories, cement service companies, cement additive manufacturers, research institutes, and quality-control laboratories, the slurry cup provides reliable compatibility with atmospheric consistometer systems and supports repeatable cement slurry testing.

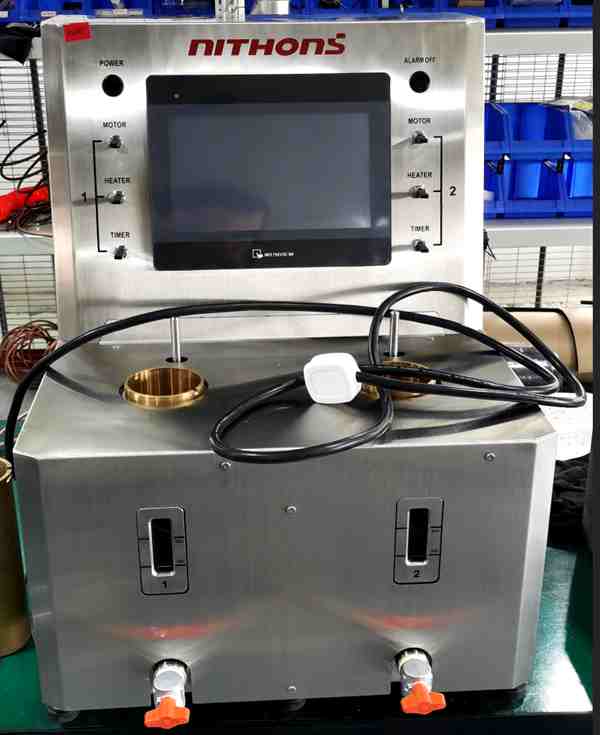

The slurry cup is specifically designed for atmospheric consistometers operating at atmospheric pressure. During testing, the cement slurry is placed inside the slurry cup and continuously conditioned while the temperature is controlled.
It is suitable for laboratory procedures involving:
Oil well cement slurry conditioning
Cement slurry thickening-time testing
Cement additive evaluation
Retarder and accelerator performance testing
Fluid-loss sample preparation
Rheology sample conditioning
Cement slurry quality control
Research and development of cementing formulations
API-Compatible Design
Manufactured according to the dimensional and functional requirements commonly used for API oil well cement testing equipment.

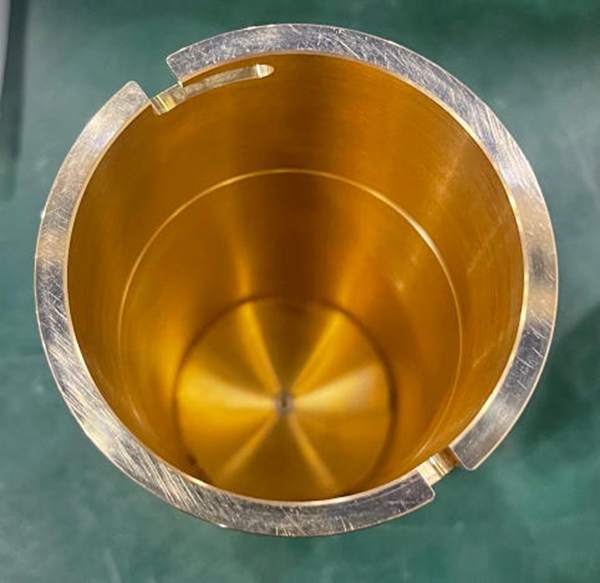

Bronze Construction
The slurry cup is manufactured from bronze, providing good thermal conductivity and mechanical durability for repeated laboratory testing.
Atmospheric Pressure Operation
Designed specifically for atmospheric consistometers rather than high-pressure high-temperature consistometers.
Temperature Capability up to 93°C
The slurry cup is designed for atmospheric consistometer applications with a maximum operating temperature of 93°C (200°F).
Easy Installation and Replacement
The slurry cup can be used as a replacement or spare component for atmospheric consistometer laboratory equipment.
Suitable for Laboratory and Field Applications
Its compact and robust construction makes it suitable for oilfield cement laboratories, cement service companies, universities, research institutes, and mobile cementing laboratories.
| Item | Specification |
|---|---|
| Product | Slurry Cup for Atmospheric Consistometer |
| Application | Atmospheric Cement Slurry Conditioning |
| Working Pressure | Atmospheric Pressure |
| Maximum Temperature | 93°C / 200°F |
| Material | Bronze |
| Length | 212.1 mm |
| Radius | 73 mm |
| Weight | 1.485 kg |
| MOQ | 1 Piece |
| Customization | Available |
| Warranty | 1 Year |
| Origin | China |
The NITHONS atmospheric consistometer slurry cup is commonly used in oil well cement testing laboratories for cement slurry conditioning and laboratory evaluation.
It can be used for testing cement systems containing:
Fluid-loss additives
Retarders
Accelerators
Dispersants
Defoamers
Lost-circulation materials
Other oil well cement additives
The conditioned slurry can subsequently be used for additional laboratory evaluations such as rheology, static fluid loss, free water, and other cement slurry performance tests.
NITHONS supplies atmospheric consistometer slurry cups as replacement and spare parts for cementing laboratory equipment.
The product is available with a minimum order quantity of one piece, making it suitable not only for OEM equipment manufacturers but also for laboratories that need individual replacement components or spare parts.
For customers with special dimensional, material, or equipment requirements, customization is also available.
NITHONS Technology is a manufacturer specializing in oil well cementing laboratory instruments and API-related accessories.
Our product range includes:
A slurry cup is used to contain and condition cement slurry during laboratory testing with an atmospheric consistometer. It allows the slurry to be continuously conditioned under controlled temperature and atmospheric pressure.
The NITHONS atmospheric consistometer slurry cup is manufactured from bronze.
The slurry cup is designed for atmospheric consistometer applications up to 93°C (200°F).
No. This model is designed specifically for atmospheric consistometers. NITHONS also supplies separate slurry cups for HPHT consistometers.
Yes. The minimum order quantity is one piece.
Yes. Customization is available for customers with special equipment or dimensional requirements.
Yes. It can be supplied as a replacement or spare slurry cup for atmospheric consistometer applications.
An atmospheric slurry cup is designed for cement slurry conditioning under atmospheric pressure, while an HPHT slurry cup is designed for high-temperature and high-pressure cement testing.
Contact NITHONS for pricing, compatibility confirmation, technical drawings, or replacement slurry cup requirements.
Sino-Japanese joint venture Tianjin Nithons Technology Co., Ltd. was established in 2013, focusing on the research and development, manufacturing, sales and after-sales service of a new generation of oil cementing testing instruments and related accessories.
