Maximum Operating Temperature: 240°C
Maximum Operating Pressure: 150 MPa
Stirring Speed: 150 ± 15 rpm
Heating Power: 3000 W
Weight: 97 kg
Dimensions (W × D × H): 660 × 450 × 640 mm
Power Supply: AC 100–110 V, 60 Hz, or AC 220–240 V, 50–60 Hz

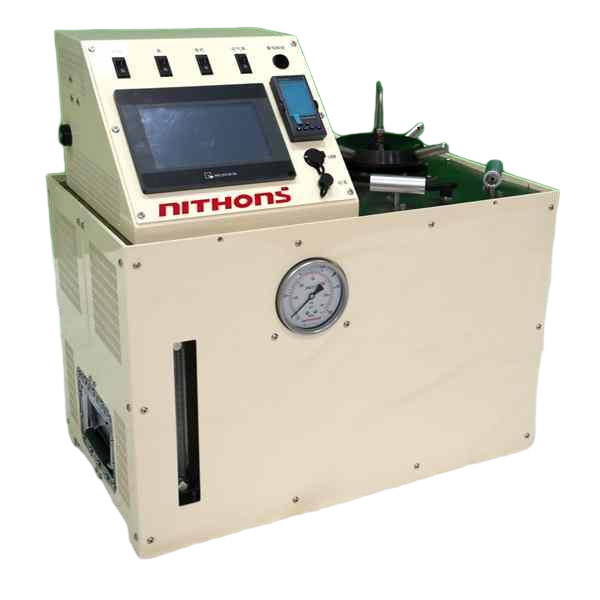

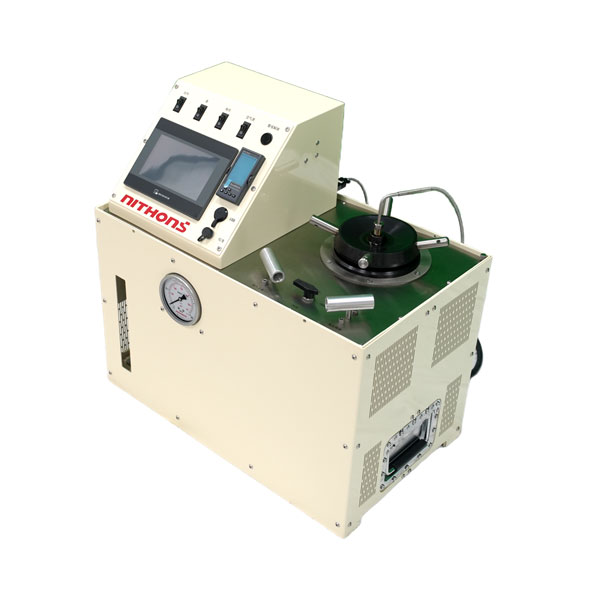

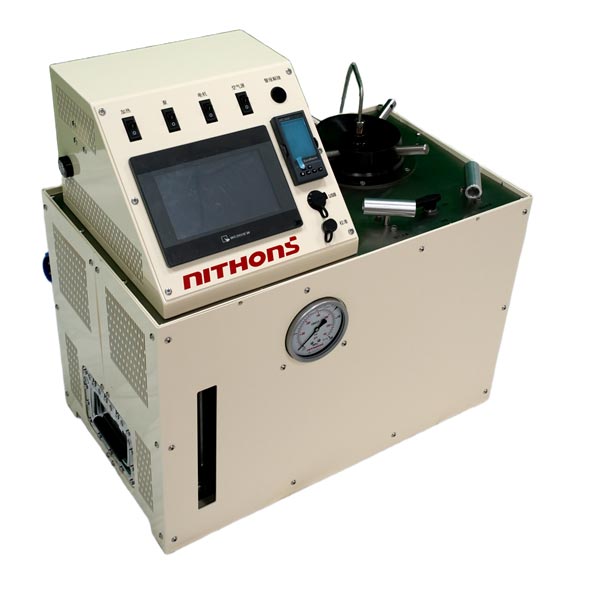

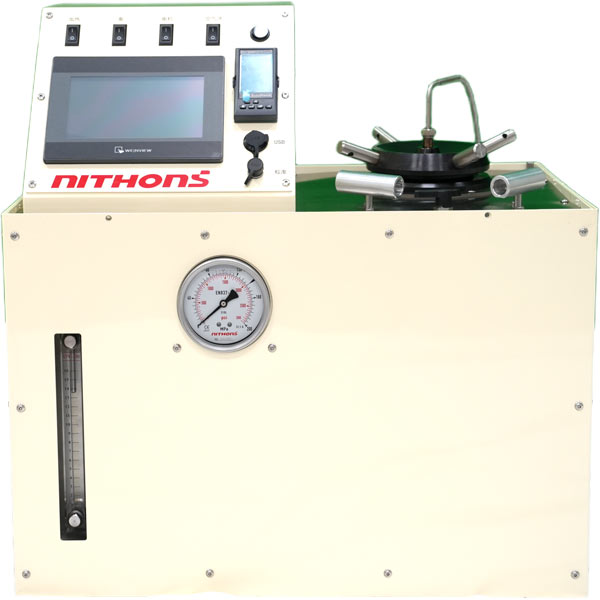

The NBCQ Portable HPHT Consistometer from Nithons is designed for oil well cement testing in cementing laboratories. Combining a compact structure, intelligent control and convenient maintenance features, this instrument offers a practical solution for laboratories looking for high-pressure, high-temperature cement testing equipment.
With a weight of just 97 kg, the NBCQ portable consistometer features a compact design that helps make equipment handling and laboratory space planning more convenient. Its maximum operating temperature of 240°C and maximum operating pressure of 150 MPa make it suitable for high-temperature and high-pressure testing applications within its specified operating limits.
The NBCQ series features a lightweight configuration weighing 97 kg, with overall dimensions of 660 × 450 × 640 mm (W × D × H). Its compact footprint helps laboratories make efficient use of available workspace while maintaining access to essential testing functions.

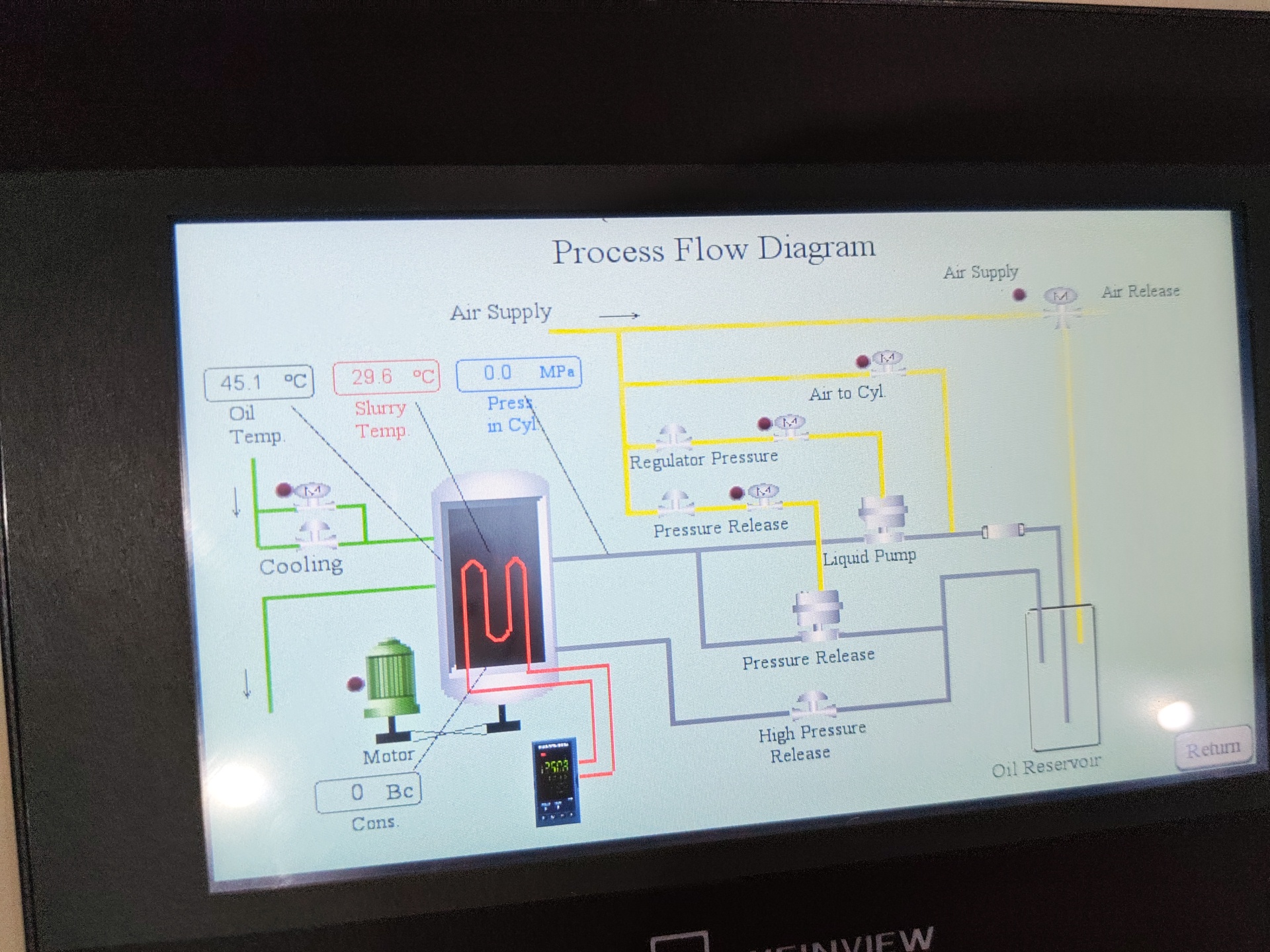

The integrated touchscreen allows users to set experimental parameters directly on the instrument. This interface reduces the need for frequent button operations and provides a more convenient way to configure and operate tests.
The NBCQ portable HPHT consistometer supports one-touch automatic operation, helping simplify routine testing procedures and reduce errors associated with manual operation. This feature is designed to make daily laboratory workflows more straightforward.
The instrument can operate independently without a connected computer. Multiple data storage options provide flexibility for laboratories working with or without a computer. The instrument also supports remote upgrades, offering an additional maintenance and upgrade option.

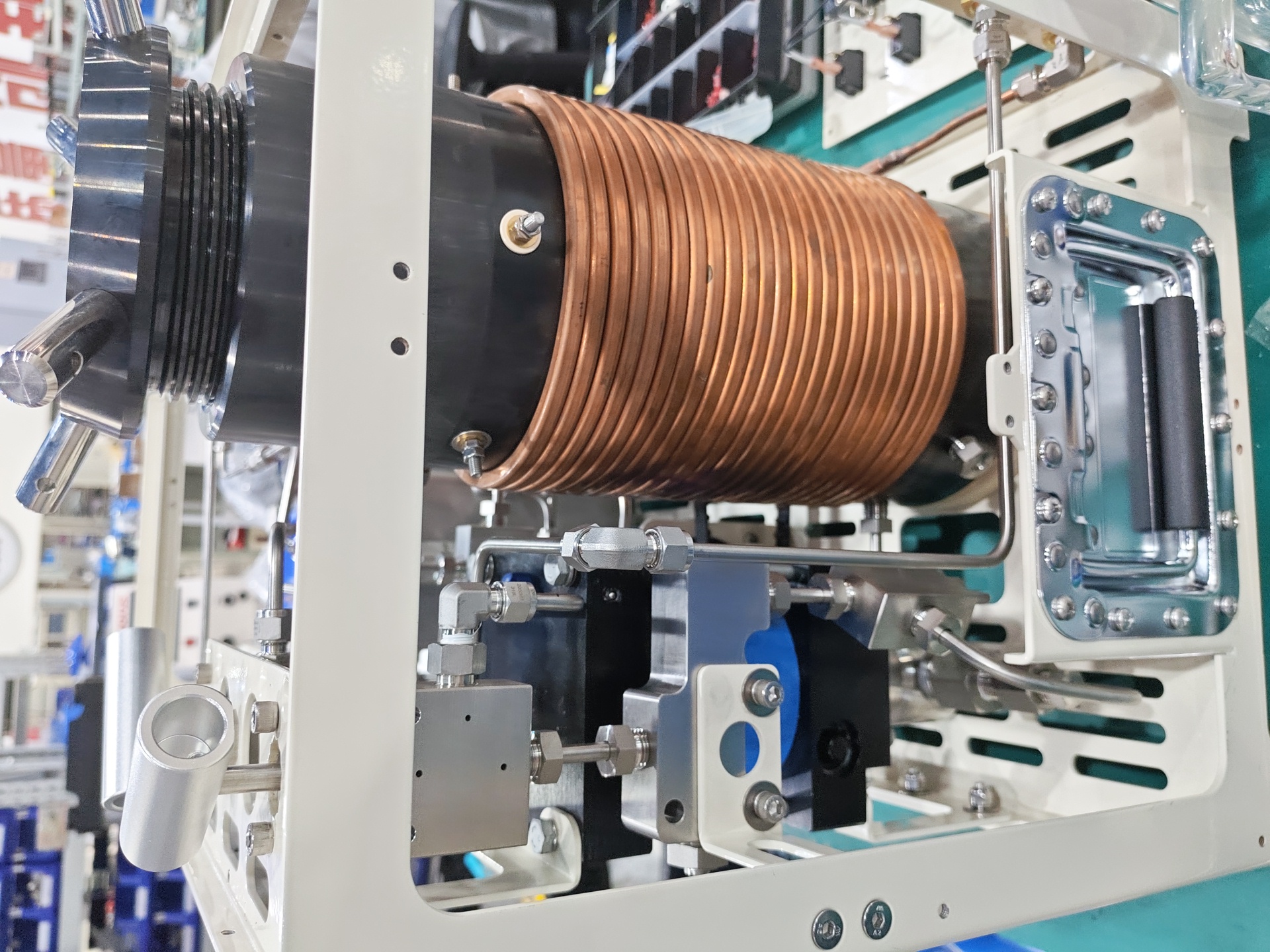

An integrated smart calibration system is designed to simplify calibration operations. For routine maintenance, the supplied universal wrench supports convenient, one-handed filter replacement, helping make this maintenance task easier for laboratory personnel.
The main technical specifications of the NBCQ Portable HPHT Consistometer are listed below:
Maximum Operating Temperature: 240°C
Maximum Operating Pressure: 150 MPa
Stirring Speed: 150 ± 15 rpm
Heating Power: 3000 W
Weight: 97 kg
Dimensions (W × D × H): 660 × 450 × 640 mm
Power Supply: AC 100–110 V, 60 Hz, or AC 220–240 V, 50–60 Hz
Please confirm the required power supply configuration when placing an inquiry.
Nithons provides laboratory instruments for oil well cement testing, with product designs focused on practical operation and laboratory requirements. The NBCQ Portable HPHT Consistometer combines a compact form factor with touchscreen control, automatic operation and flexible data storage to support everyday testing workflows.
For laboratories evaluating portable HPHT consistometers, these features offer a useful combination of operating convenience, space efficiency and specified high-pressure, high-temperature capability.
Looking for portable HPHT consistometer equipment for your oil well cement testing laboratory?
Contact Nithons to request product information, confirm your technical requirements and obtain a quotation.
