Model: NDCQ Desktop HPHT Consistometer
Maximum Operating Temperature: 240°C
Maximum Operating Pressure: 150 MPa
Stirring Speed: 150 ± 15 rpm
Heating Power: 3000 W
Dimensions (W × D × H): 660 × 450 × 640 mm
Power Supply: AC 100–110 V, 60 Hz, or AC 220–240 V, 50–60 Hz
Standard Feature: Automatic pressure release function

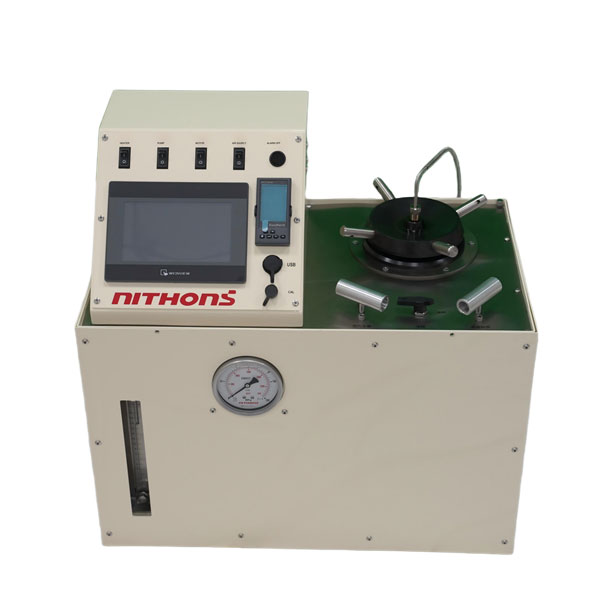

The NDCQ Desktop HPHT Consistometer from Nithons is designed for oil well cement testing in cementing laboratories, oilfield service companies, and drilling engineering facilities. Combining a desktop configuration with intelligent control and a standard automatic pressure release function, this instrument offers a practical solution for laboratories seeking reliable high-pressure, high-temperature cement testing equipment.
Unlike the NBCQ portable HPHT consistometer, the NDCQ desktop model comes standard with automatic pressure release functionality for controlled pressure management. This feature is an important consideration for laboratories evaluating consistometers with different operating and pressure-control configurations.
With a maximum operating temperature of 240°C and a maximum operating pressure of 150 MPa, the NDCQ is designed for laboratory testing within its specified operating limits. Its touchscreen interface, standalone operation capability, and integrated smart calibration system help simplify routine instrument operation.
The NDCQ Desktop HPHT Consistometer comes standard with an automatic pressure release function, supporting pressure management during instrument operation. For buyers comparing HPHT consistometers, this built-in feature distinguishes the NDCQ desktop model from the NBCQ portable version.
Laboratories can consider this functionality when selecting equipment according to their testing procedures, operating preferences, and laboratory requirements. Specific pressure-release sequences and operating conditions should be confirmed with the manufacturer.
The NDCQ desktop consistometer has a maximum operating temperature of 240°C and a maximum operating pressure of 150 MPa. Its stirring speed is 150 ± 15 rpm, with a heating power of 3000 W.
These specifications provide essential reference points for oil well cement laboratories evaluating high-pressure, high-temperature consistometer equipment. Customers should compare the instrument's specified operating limits with their required testing conditions before purchasing.

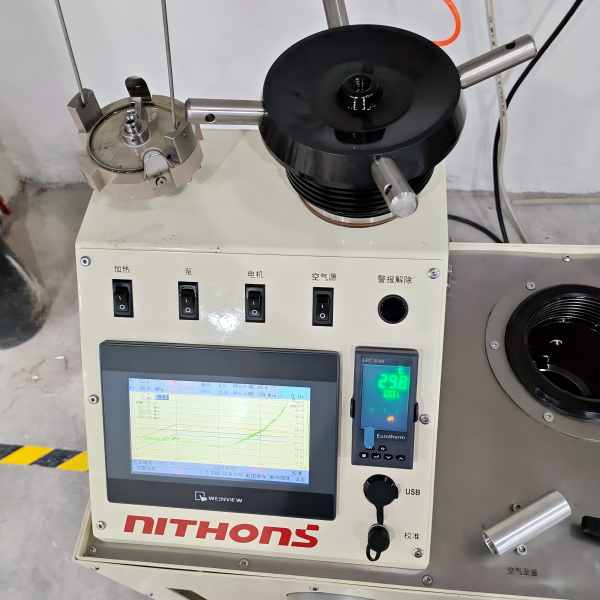

The integrated human-machine interface allows users to set experimental parameters directly on the touchscreen, reducing the need for frequent button operations. The interface is designed to make routine instrument operation more convenient for laboratory personnel.
The NDCQ also supports one-touch automatic operation, helping simplify testing workflows and reduce errors associated with manual operation.
The NDCQ Desktop HPHT Consistometer can operate independently without a connected computer. Multiple data storage options provide flexibility for laboratories working with or without a computer.
Remote upgrade capability provides an additional option for instrument updates. These functions are useful considerations for laboratories seeking practical equipment operation and flexible data management.

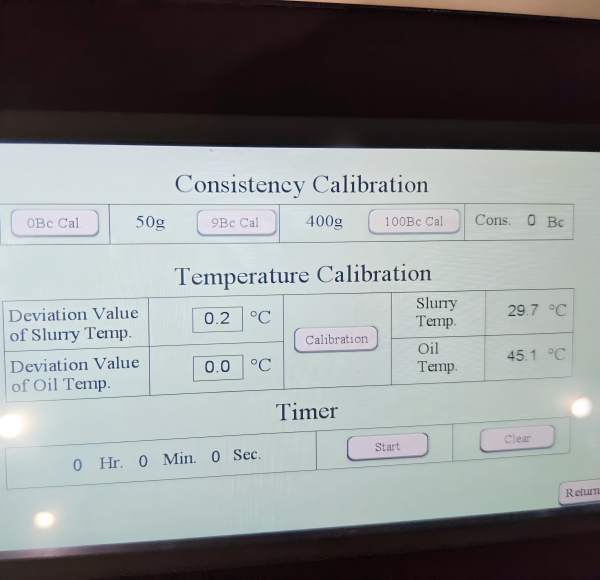

The integrated smart calibration system is designed to simplify calibration operations. For routine maintenance, the supplied universal wrench supports one-handed filter replacement, making this maintenance task more convenient for operators.
The instrument combines these practical features with a desktop configuration for laboratory use.
Model: NDCQ Desktop HPHT Consistometer
Maximum Operating Temperature: 240°C
Maximum Operating Pressure: 150 MPa
Stirring Speed: 150 ± 15 rpm
Heating Power: 3000 W
Dimensions (W × D × H): 660 × 450 × 640 mm
Power Supply: AC 100–110 V, 60 Hz, or AC 220–240 V, 50–60 Hz
Standard Feature: Automatic pressure release function
Please confirm the required power supply configuration and specific operating requirements when requesting a quotation.
Nithons supplies laboratory instruments for oil well cement testing, with designs focused on practical operation, instrument functionality, and laboratory requirements. The NDCQ Desktop HPHT Consistometer combines specified high-pressure and high-temperature capabilities with touchscreen control, standalone operation, smart calibration, and standard automatic pressure release.
For oilfield service companies, cementing laboratories, equipment distributors, and drilling engineering contractors, these features provide a clear basis for technical evaluation and equipment selection.
Looking for a desktop HPHT consistometer with automatic pressure release for your cementing laboratory?
Contact Nithons to discuss your application, confirm technical requirements, and request a quotation for the NDCQ Desktop HPHT Consistometer.
