Drilling viscometer

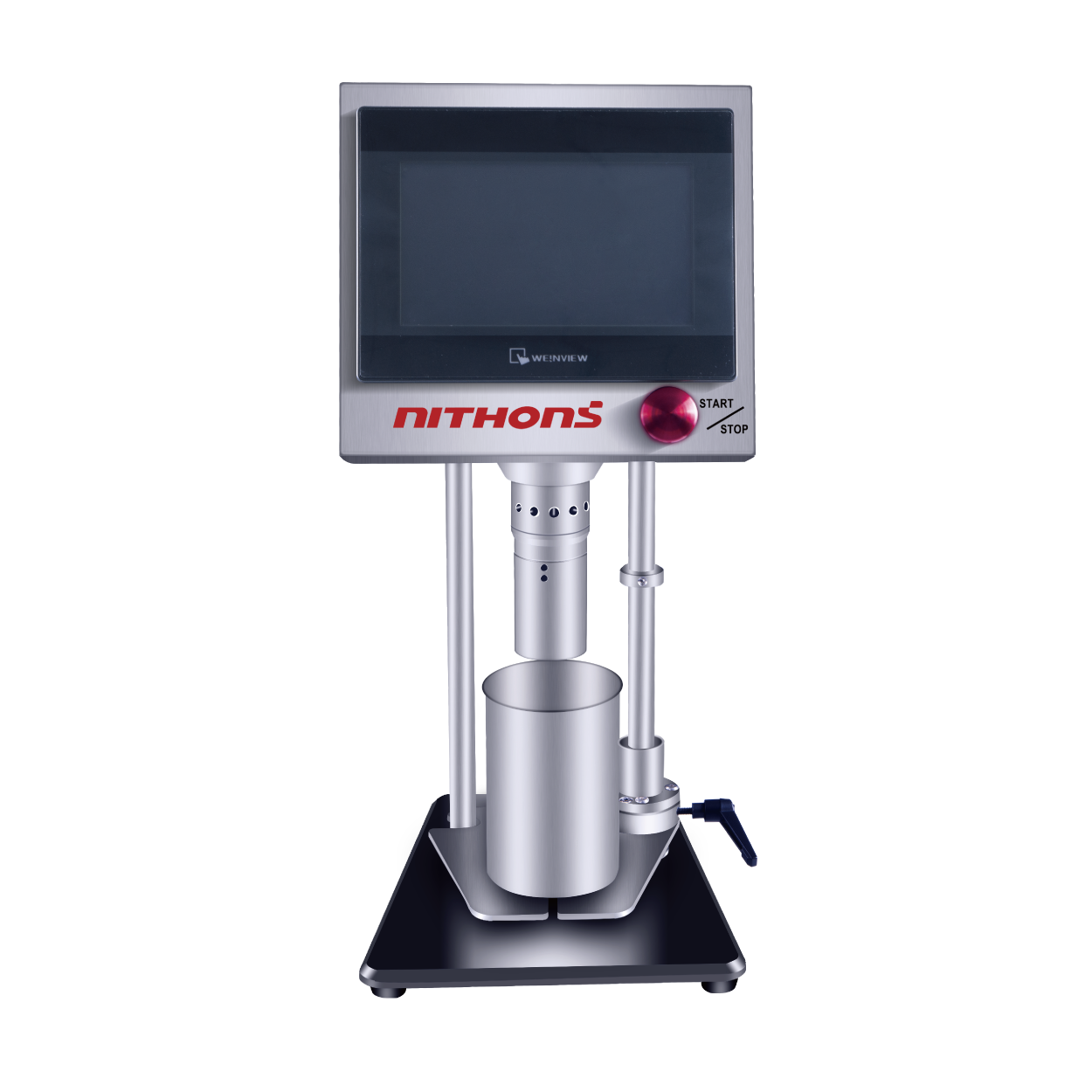

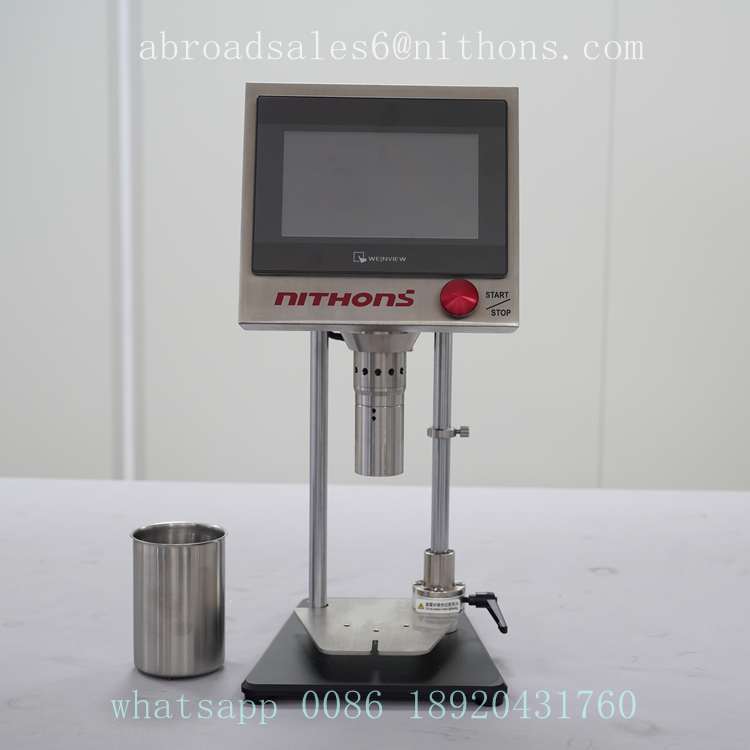

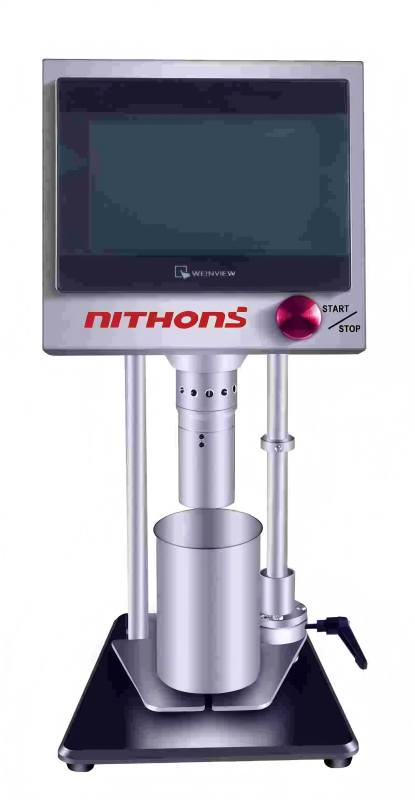

Nithons Smart Rotational Viscometer: Revolutionizing Rheology Testing​

In oilfield cementing operations, rheological property testing is critical for ensuring slurry quality. Compared to traditional rotational viscometers, the Nithons Smart Drilling Viscometer represents a revolutionary breakthrough through full automation technology.

​Limitations of Conventional Viscometers​

1. Manual operation complexity: Requires adjusting speeds (3/6/100/200/300/600 RPM) and recording readings manually
2. Complicated calculations: Engineers must manually compute PV, YP, n-value, K-value
3. Human error risks: Visual dial reading introduces potential errors
4. Time-consuming data processing: Manual rheogram plotting and report generation

​Innovative Advantages of Nithons Smart Viscometer​

1. Fully Automated Testing Process

   • Automatic multi-speed scanning per API standards
   • Auto-capture and storage of viscosity data at all speeds

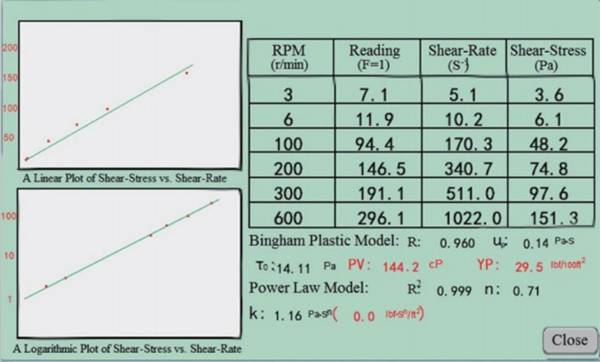

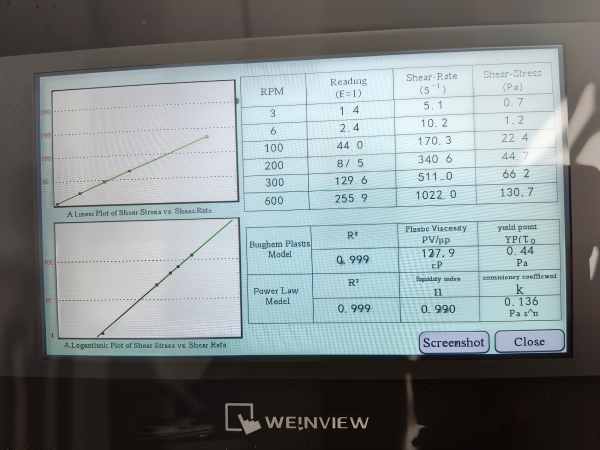

   • Instant calculation and display of PV, YP, n-value, K-value

2. Intelligent Data Processing System

   • Built-in rheological algorithms generate complete flow curves

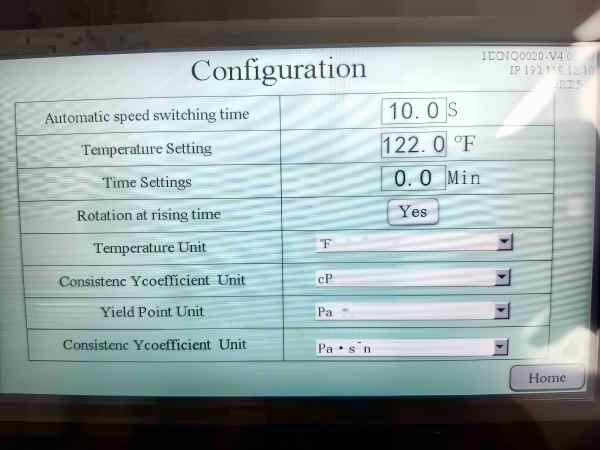

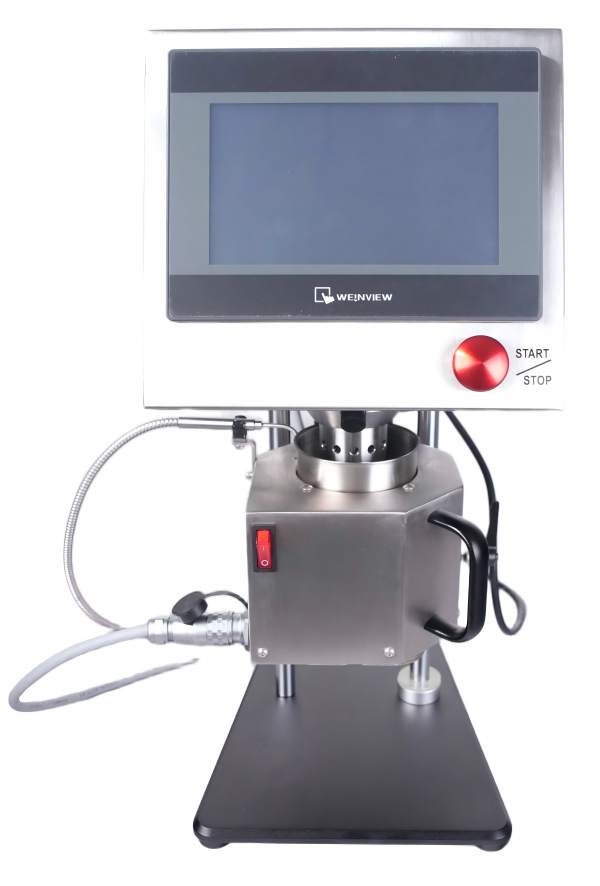

   • Real-time data/curve display on 7-inch touchscreen
   • Automatic API-compliant test reporting

3. Precision Measurement Assurance

   • High-accuracy torque sensor with 0.1 cP resolution
   • Automatic temperature compensation
   • Electronic reading eliminates visual errors

4. Optimized Workflow Efficiency

   • Reduces testing time by over 60%
   • Automatic data storage with USB export
   • Capacity for 1000+ test datasets

​Typical Application Comparison​
Traditional methods require 30 minutes for full API testing:

• 15 minutes for manual speed adjustment/reading
• 10 minutes for parameter calculation
• 5 minutes for report compilation

Nithons Smart Viscometer completes the entire process in just 10 minutes with superior accuracy.

​Technical Specifications​

• Max. Temperature of Sample	93℃	Sample Cup Volume	350ml
  Input Voltage	Applicable for AC100-230V	Input Power	200W
  Dimensions (W*D*H)	21*35*53cm	Weight	25kg
  Shear Rate	1.7-1022s-1	Max. Reading	430

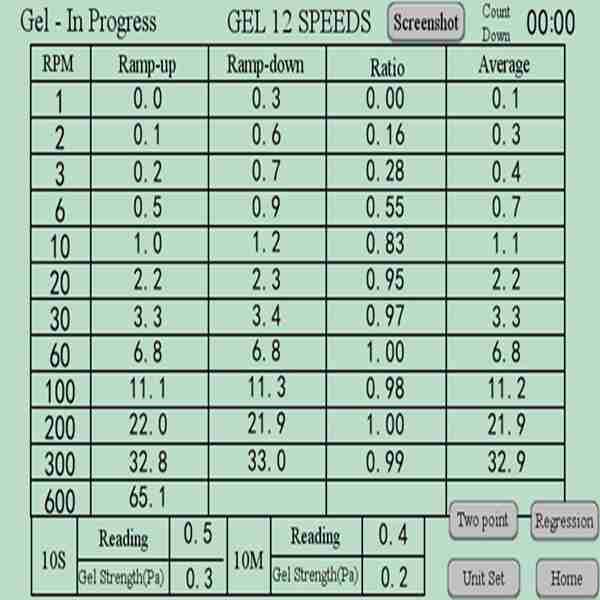

  Rotation Speed	1,2,3,6,10,20,30,60,100,200,300,600rpm

The Nithons Smart Drilling Viscometer ushers cement testing into the smart era, delivering unprecedented efficiency and precision for rheological property analysis.

This cutting-edge instrument eliminates manual errors while providing laboratory-grade accuracy in field conditions, making it the ultimate solution for modern cementing quality control.

With its rugged design and user-friendly interface, it's engineered to withstand harsh oilfield environments while simplifying complex testing procedures.

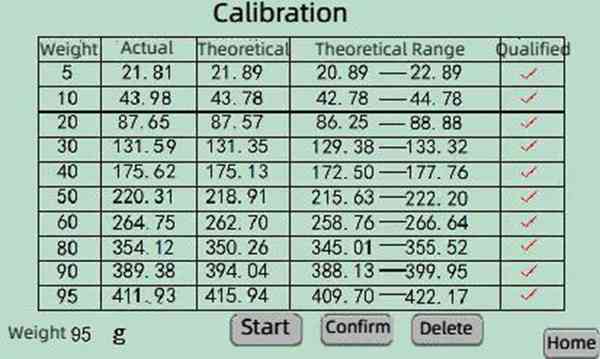

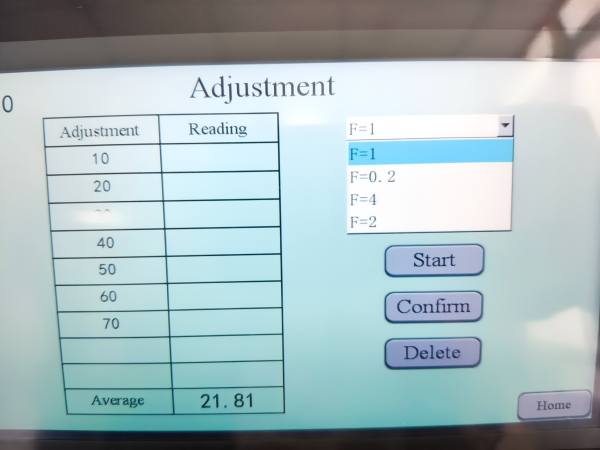

The viscometer's advanced features include automatic calibration verification, real-time data trending, and customizable alarm settings for out-of-spec measurements.

By integrating cloud connectivity options, it enables remote monitoring and data sharing across multiple job sites.

For drilling fluid engineers seeking to optimize slurry performance and ensure well integrity, the Nithons Smart Viscometer represents the new gold standard in rheological measurement technology.

​Key Benefits Summary​

• Full automation eliminates human error
• 60% faster than manual methods
• Laboratory-grade field measurements
• Rugged IP65-rated construction
• Cloud-enabled data management

​Compliance Standards​

• API RP 10B compliant
• ISO 10426 certified
• ATEX Zone 2 optional

​Service Support​

• 24-month warranty
• Global technical support
• On-site calibration services
