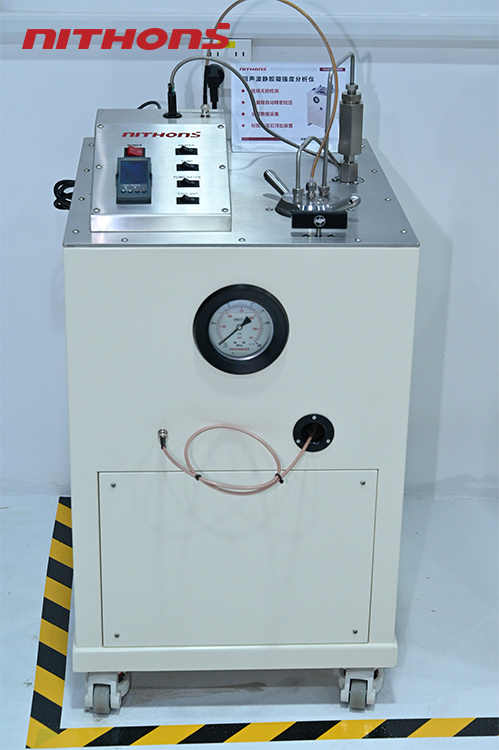

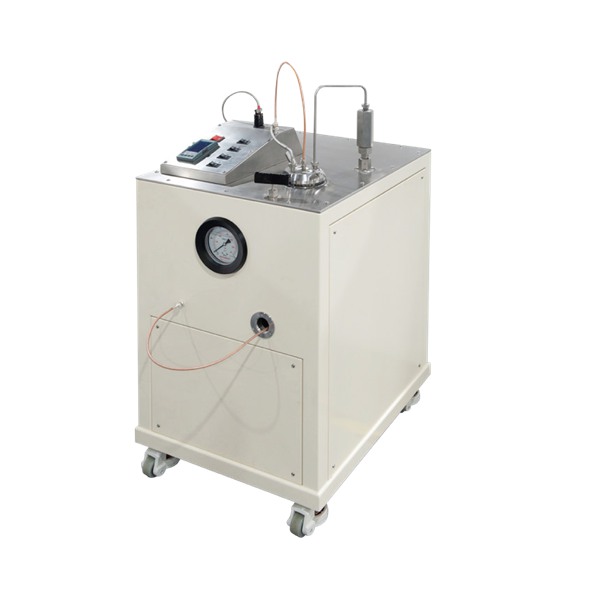

Nithons Static Gel Strength Tester: The Precision Monitoring Solution for Cement Slurry Solidification Performance
In cementing operations, the development process of cement slurry's static gel strength (Gel Strength) directly impacts gas migration prevention capabilities and wellbore integrity. The Nithons Gel Strength Tester incorporates world-class components and innovative technologies to provide accurate and reliable monitoring solutions for the cement slurry solidification process, ensuring that cementing quality complies with API standard requirements.
Core Advantages
High-Precision Measurement
- Utilizes high-sensitivity pressure sensors from UK ESI (accuracy ±0.01% FS) to capture minute changes in gel strength in real time
- Measurement range covers 10-2000 lbf/100ft² (0.5-100 Pa) with a resolution of 0.1 lbf/100ft²
- Meets API RP 10B-7 testing requirements for static gel strength
Intelligent Temperature Control System
- Equipped with Eurotherm 3504 series temperature controllers from the UK
- Offers temperature control accuracy of ±0.5°C
- Supports broad temperature range from -10°C to 150°C

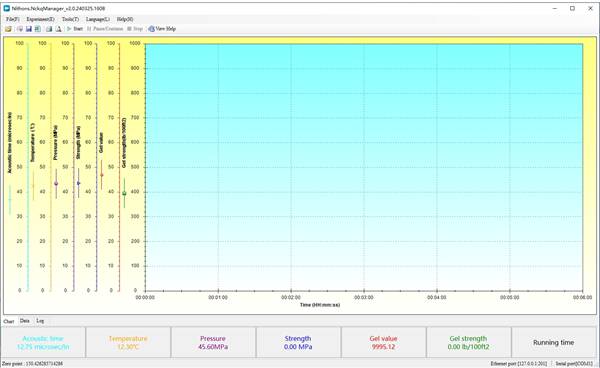

- Automatically records temperature-gel strength curves
- Complies with ISO 10426-2 high-temperature testing specifications
Safe and Stable Design
- Siemens S7-1200 PLC from Germany enables fully automated control
- Supports customizable testing procedures
- HIP pneumatic relief valves and high-pressure fittings from the US (rated for 10,000 psi)
- Ensures safety under extreme operating conditions
Data Traceability
- Automatically generates test reports in API 10B-7 Annex E format
- Data storage capacity of up to 100,000 datasets
- Supports USB export and cloud backup
Application Scenarios
- Gas Migration Prevention Performance Evaluation: Precisely measures transition time (critical value 30-50 lbf/100ft²)
- Deep Well Cementing: Simulates gel strength development under HPHT conditions
- Unconventional Wells: Evaluates solidification characteristics of nano-material/fiber-reinforced cement
Additional Technical Specifications
- Measurement Modes: Supports continuous and intermittent measurement modes
- Calibration: Automated self-calibration with traceable NIST standards
- User Interface: 10-inch high-resolution touchscreen (English/Chinese/Russian)
- Connectivity: Ethernet, USB, and Wi-Fi for LIMS integration

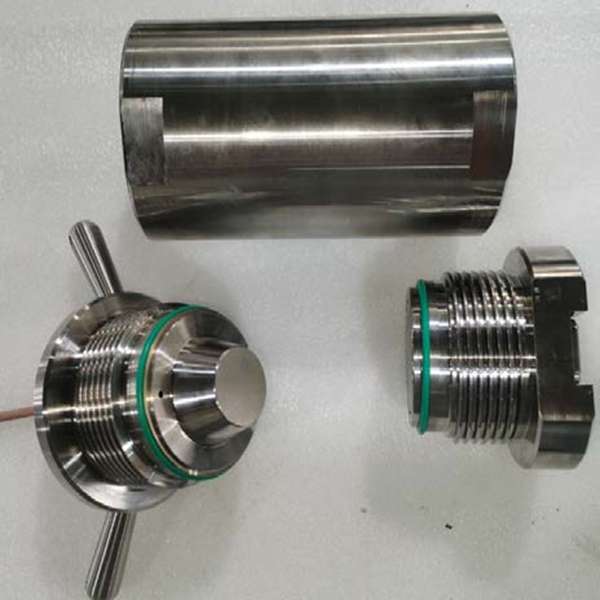

- Durability: 316L stainless steel wetted parts for corrosion resistance
- Environmental Compliance: IP65 protection rating
Quality Assurance
- Rigorous factory testing includes:
- 72-hour continuous operation stress test
- Temperature cycling (-20°C to 60°C)
- Vibration/shock resistance testing per MIL-STD-810G
- 3-year comprehensive warranty on major components
Industry Recognition
- 2023 World Oil Awards for Best Well Cementing Technology
- API Monogram Program Certified (License #CEM-2345)
- Deployed in over 30 countries worldwide
Service and Support
- Global 24/7 technical support (<2 hour response)
- On-site training and commissioning services
- Regular software updates for API compliance
- Customizable test protocols for proprietary formulations
Why Choose Nithons?
- Unmatched Accuracy: Industry-leading measurement precision
- Reliable Performance: Proven in harsh oilfield environments
- Future-Proof Design: Modular architecture for easy upgrades
- Comprehensive Data: Complete regulatory documentation
- Global Support: Extensive service network minimizes downtime
The Nithons Static Gel Strength Tester represents the next generation of cement slurry evaluation technology, combining precision engineering with robust field performance to deliver trusted results for your most critical cementing operations.
Key Features Summary
- Real-time gel strength monitoring
- Automated API-compliant testing
- High-precision sensors and controls
- Robust safety features
- Advanced data management
Technical Compliance
- API RP 10B-7 compliant
- ISO 10426-2 certified
